| Fan Type: Ceiling Fan with Downrod, Indoor Ceiling Fan, Outdoor Ceiling Fan, Ceiling Fan with Remote |
| Fan Style: Contractor, Modern |
| Light Usage Location: Bedroom, Bathroom, Dining Room, Entryway, Game Room, Hallway, Kitchen, Living Room, Office |
| Fan Lights: No Lights |
| Finish: Brushed Aluminum |
| Material: Aluminum |
| Blade Finish: Brushed Aluminum |
| Number of Blades: 8 |
| Blade Span: 66'' |
| Blades Included: Yes |
| Blade Material: ABS |
| Reversible Blades: No |
| Blade Pitch: 14 |
| Blade Length: 28.85'' |
| Blade Height: 14'' |
| Body Diameter: 8.3'' |
| Canopy Diameter: 7'' |
| Reversible: No |
| Safety Rating: ETL, cETL, UL, cUL, CSA Canada, Title 24 JA8-2016 CEC Compliant, Title 20, Energy Star Rated |
| Location Rating: Wet |
| Location: Interior/Exterior |
| Energy Star Complaint: Yes |
| Title 24 Compliant: Yes |
| Title 20 Complaint: Yes |
| ADA Compliant: Yes |
| Sloped Ceiling Adaptable: Yes |
| Maximum Slope: 32 |
| Optional Control Type: iOS/Android App, Wifi, Voice, Remote Control, Wall Panel, Wall Control |
| Wire Length: 80'' |
| Low Ceiling Adaptable: Yes |
| Speeds: 6 |
| Reversible Motor: Yes |
| Motor Type: DC |
| CFM (High): 8500 |
| CFM (Medium): 5250 |
| CFM (Low): 2220 |
| RPM (High): 153 |
| RPM (Medium): 95 |
| RPM (Low): 40 |
| Motor Size: 168 X 30 |
| Airflow Efficiency: 266 |
| Motor Power (Watts): 32 |
| Yearly Energy Cost: 5.19 |
| Loudness: 15db |
| Amperage: 0.27 |
| Voltage: 120 |
| Light Kit Adaptable: Yes |
| Light Kit Type: LED |
| Cap Included: Yes |
| Light Kit Included: No |
| Pull Chain Included: No |
| Remote Included: Yes |
| Wall Control Included: No |
| Receiver Included: Yes |
| Remote Features: Bluetooth Remote Control, Android or iOS Device |
| Wall Control Features: Bluetooth Wall Control with on/off, 6 speed, reverse, and dim to 1% (Sold Separately) |
|

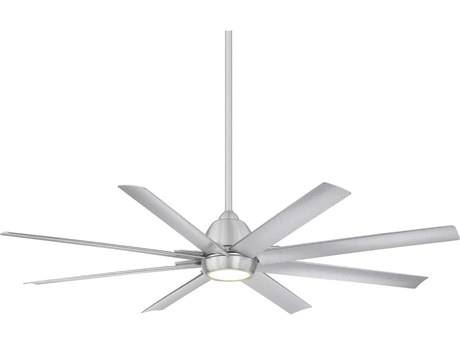

Mocha XL is an expansion on a timeless model that has something every generation can enjoy. This smart fan?s aesthetic stands out with a time honored style and versatility unmatched by its high performance in large spaces. Make it smart by downloading the WAC Smart Fans app for additional functionality. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FEATURES
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BRAND INFO
|
DIMENSIONS & WEIGHT
|
MORE DOCUMENTS
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SPECIFICATIONS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WAC Smart Fans can be controlled from the WAC Smart Fan app, enabling smart features and full control of your fan from an iOS or Android device. Download the app to pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
